Brand: | CAT |
Weight: | 5.5 Tons |
Bucket capacity: | 0.22m³ |
Equipped with a Caterpillar C2.4 engine, it is powerful and fuel efficient. It adopts the hydraulic system independently developed by Caterpillar, which enables precise operation, smooth compound movements and improved operating efficiency. It is equipped with rubber tracks, which ensures smooth walking, reduces damage to the ground and facilitates transfer. It adopts a tailless slewing design, which allows flexible operation even in narrow spaces to avoid collisions. It adopts a pilot control handle, which is light and flexible to operate and easy to use. It adopts energy-saving technology to effectively reduce fuel consumption and save operating costs.
Basic information | |
Size: | 5.765×1.95×2.54 m |
Weight: | 5t |
Machine working weight: | 5.5t |
Bucket capacity: | 0.22m³ |
Boom length: | 3200mm |
Stick length: | 1500mm |
Bucket width: | 766mm |
Track gauge: | 1550mm |
Minimum ground clearance: | 628mm |
Rear turning radius: | 1580mm |
Engine | |

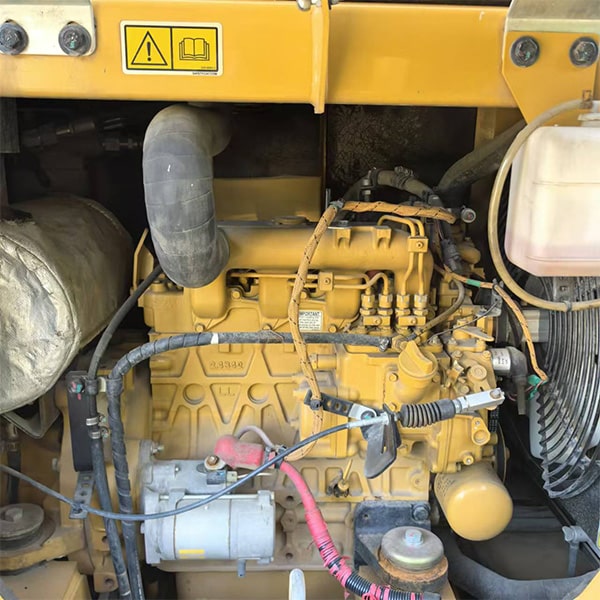

Engine type: | Cat C2.4 DI |
Max output power: | 34.1kW |
Hydraulic system | |

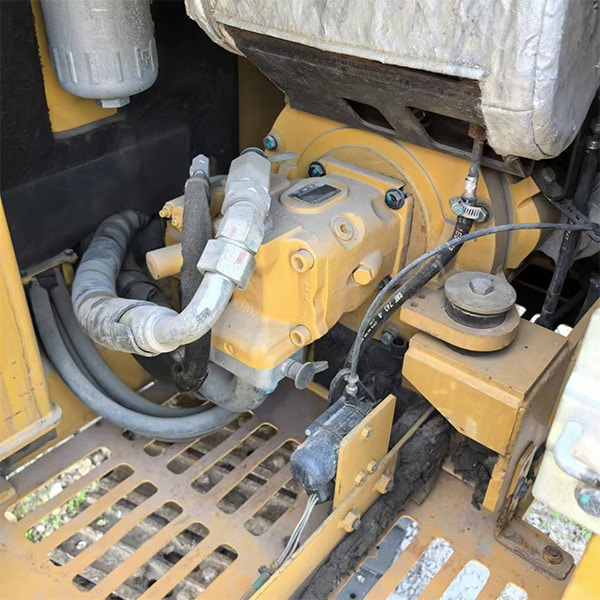

Main pump maximum flow: | 140L/min |
Capacity | |
Fuel tank: | 78L |
Hydraulic tank: | 58L |
Engine oil replacement amount: | 9.5L |
Coolant: | 9.8L |
Performance parameters | |
Bucket digging force: | 35kN |
Stick digging force: | 27.2kN |
Maximum traction: | 40.2kN |
Scope of work | |
Maximum digging radius: | 5955mm |
Maximum digging depth: | 3720mm |
Maximum digging height: | 5460mm |
Maximum unloading height: | 3835mm |
Maximum vertical digging depth: | 2210mm |
Brand: | KUBOTA |
Weight: | 3.5 Tons |
Bucket capacity: | 0.11 m3 |
Brand: | YUGONG |
Weight: | 1.8 Tons |
Bucket capacity: | 0.04m³ |
