The hydraulic system independently developed by Carter is used, which features precise operation, smooth compound movements and improved working efficiency. It provides a variety of working modes to choose from, and can adjust the engine power and hydraulic system flow according to different working conditions to achieve high efficiency and energy saving. It has strong power and high fuel efficiency. The reinforced chassis structure has strong load-bearing capacity, high stability and extended service life. It is easy to maintain and is especially suitable for operations in earthwork projects, road construction, mining and other fields.
Basic information | |
Size: | 9.46×2.8×3.03 m |
Weight: | 20t |
Machine working weight: | 21.1t |
Bucket capacity: | 1m³ |
Boom length: | 5700mm |
Stick length: | 2500mm |

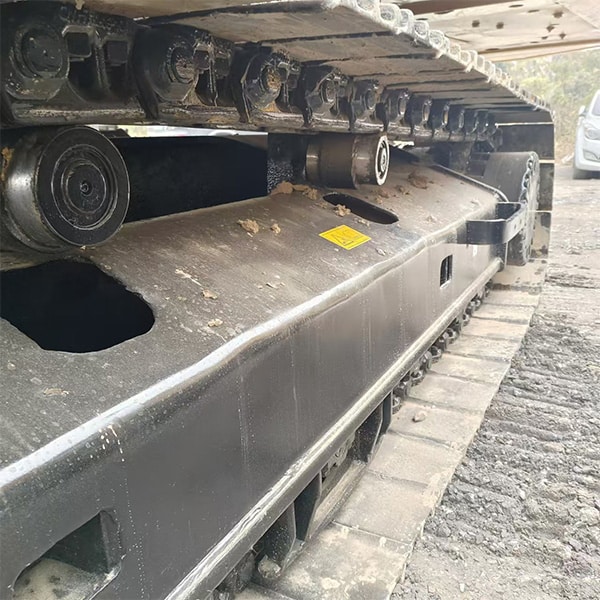

Track shoe width: | 600mm |
Track gauge: | 2200mm |
Minimum ground clearance: | 450mm |
Counterweight ground clearance: | 1020mm |
Rear turning radius: | 2750mm |
Engine | |

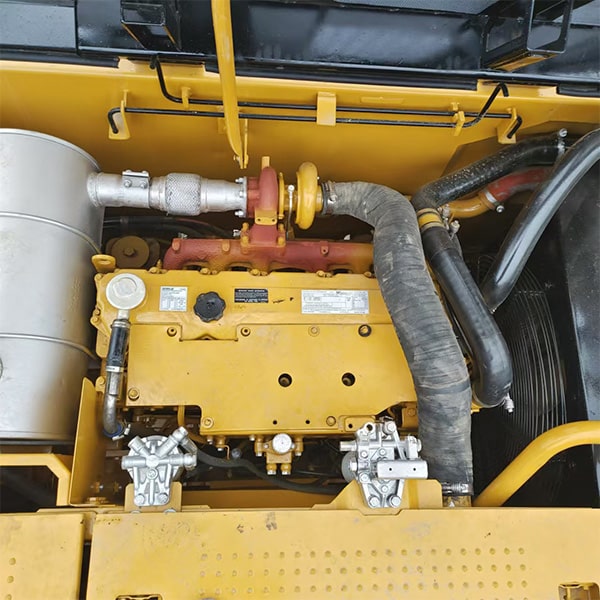

Engine type: | Cat C6.4 |
Max output power: | 103kW |

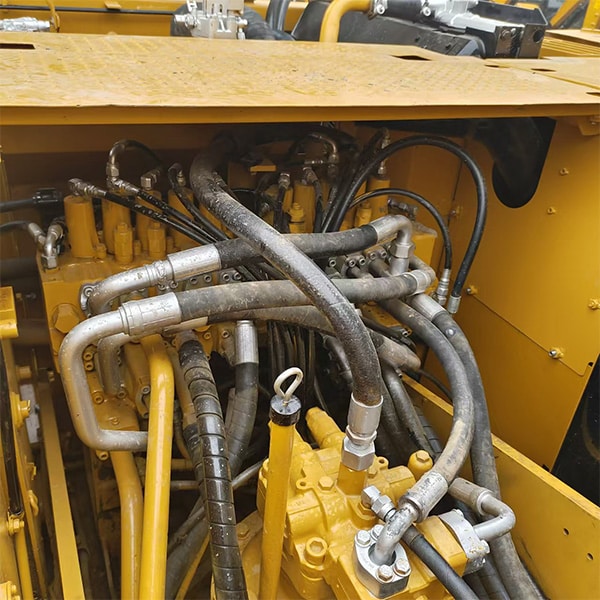

Hydraulic system | |

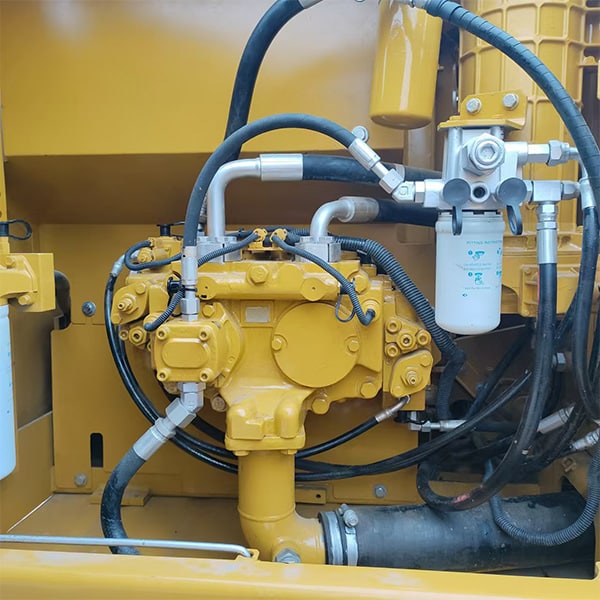

Main pump maximum flow: | 205L/min |
Working hydraulic oil circuit: | 35Mpa |
Travel hydraulic circuit: | 35Mpa |
Rotary hydraulic circuit: | 25Mpa |
Capacity | |
Fuel tank: | 410L |
Hydraulic tank: | 120L |
Engine oil replacement amount: | 30L |
Coolant: | 25L |
Performance parameters | |
Bucket digging force: | 140kN |
Stick digging force: | 106kN |
Maximum traction: | 205kN |
Scope of work | |
Maximum digging radius: | 9890mm |
Maximum digging depth: | 6720mm |
Maximum digging height: | 9840mm |
Maximum unloading height: | 6490mm |
Maximum vertical digging depth: | 6180mm |
Maximum valid digging depth: | 6540mm |
